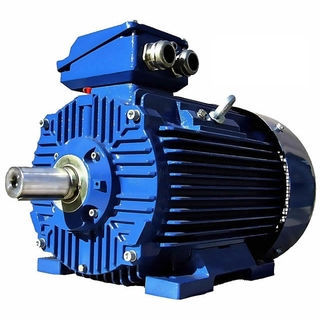

Three-phase motor 3SIE160M2Binduction690 V400 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 400 V, 690 V
- Protection class
- IP55
- Configuration
- aluminum, squirrel-cage rotor
- Efficiency classes
- IE3
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial, for pump, for conveyors, for fans, for crane
- Other characteristics
- low-noise, low-vibration, IEC
- Power
15 kW
(20.394 hp)- Intensity
15.2 A, 26.2 A
- Torque
48.6 Nm
(35.8455 ft.lb)- Rotational speed
2,946 rpm
(18,510.26 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Rated voltage [V] 400/690
Breakdown torque ratio [ 3.4
Winding connection ∆/Y
Starting current ratio [ 8.0
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Rated output [kW] 15
Efficiency at 2/4 of full load [ 89.8
Rated output [HP] 20
Efficiency at 3/4 of full load [ 91.9
Service factor [ 1.0
Efficiency at rated (full) load [ 91.9
Duty S1
Efficiency at 5/4 of full load [ -
Rated current [A] 26.2/15.2
Power factor at 1/4 of full load [ -
Synchronous speed [rpm] 3000
Power factor at 2/4 of full load [ 0.81
Rated speed [rpm] 2945
Power factor at 3/4 of full load [ 0.88
Rated torque [Nm] 48.6
Power factor at rated (full) load [ 0.90
Starting torque ratio [ 2.4
Power factor at 5/4 of full load [ -
