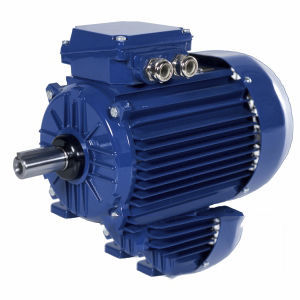

IE2 motor - 2SIE71x-2C - Cantoni Motor - three-phase / induction / 400 V

Characteristics

AC/DC: three-phase
Type: induction
Voltage: 400 V, 380 V, 460 V, 230 V, 220 V, 265 V
Protection class: IP55, IP54
Configuration: aluminum, squirrel-cage rotor
Efficiency classes: IE2
Number of poles: 2-pole
Cooling mechanism: IC411
Applications: industrial, for pump, for conveyors, for fans, for crane, for washing machines
Other characteristics: IEC, high-efficiency
Power: 750 W
(1.02 hp)
Intensity: 1.8 A, 3.1 A
Torque: 2.57 Nm
(1.89553 ft.lb)
Rotational speed: 2,780 rpm, 3,000 rpm
(17,467.26 rad.min-1, 18,849.56 rad.min-1)
Operating temperature: 40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.2 Winding connection ∆/Y Starting current ratio [ 4.8 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 73.0% Rated output [HP] 1.0 Efficiency at 3/4 of full load [ 77.0% Service factor [ 1.0 Efficiency at rated (full) load [ 78.0% Duty S1 Power factor at 2/4 of full load [ 0.64 Power factor at 3/4 of full load [ 0.75 Power factor at rated (full) load [ 0.81 Starting torque ratio [ 2.1 Sound pressure level [dB] 60 Frame size 71 Sound power level [dB] 67 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62032Z Frequency converter supply yes Bearing on ND-side 62032Z
