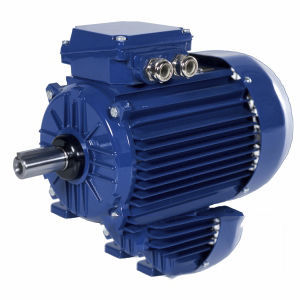

IE2 motor 2SIE80x-6Cthree-phaseinduction230 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 400 V, 230 V
- Protection class
- IP55, IP54
- Configuration
- aluminum, squirrel-cage rotor
- Efficiency classes
- IE2
- Number of poles
- 6-pole
- Cooling mechanism
- IC411
- Applications
- industrial, for pump, for conveyors, for fans, for crane
- Other characteristics
- high-efficiency, low-noise, low-vibration, IEC
- Power
750 W
(1.02 hp)- Intensity
2 A, 3.45 A
- Torque
7.78 Nm
(5.7382 ft.lb)- Rotational speed
920 rpm, 1,000 rpm
(5,780.53 rad.min-1, 6,283.19 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.3
Winding connection ∆/Y
Starting current ratio [ 3.8
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 73.4
Rated output [HP] 1.0
Efficiency at 3/4 of full load [ 75.9
Service factor [ 1.0
Efficiency at rated (full) load [ 76.0
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.47
Power factor at 3/4 of full load [ 0.62
Power factor at rated (full) load [ 0.71
Starting torque ratio [ 2.3
Power factor at 5/4 of full load [ -
