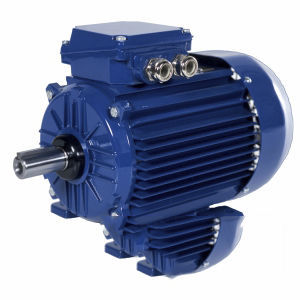

IE2 motor 2SIE80x-4C
three-phaseinduction230 V

IE2 motor
IE2 motor
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 230 V
Protection class
IP55, IP54
Configuration
aluminum, squirrel-cage rotor
Efficiency classes
IE2
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial, for pump, for conveyors, for fans, for crane, for washing machines
Other characteristics
high-efficiency, IEC
Power

1.1 kW
(1.496 hp)

Intensity

3 A, 5.2 A

Torque

7.61 Nm
(5.6128 ft.lb)

Rotational speed

1,500 rpm
(9,424.78 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.1 Winding connection ∆/Y Starting current ratio [ 3.7 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 72.0 Rated output [HP] 1.5 Efficiency at 3/4 of full load [ 78.0 Service factor [ 1.0 Efficiency at rated (full) load [ 81.4 Duty S1 Efficiency at 5/4 of full load [ - Power factor at 1/4 of full load [ - Power factor at 2/4 of full load [ 0.47 Power factor at 3/4 of full load [ 0.59 Power factor at rated (full) load [ 0.65 Starting torque ratio [ 2.3 Power factor at 5/4 of full load [ -
