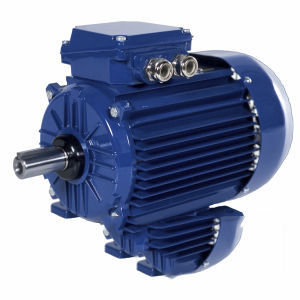

IE2 motor 2SIE112M2B
three-phaseinduction690 V

IE2 motor
IE2 motor
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 690 V
Protection class
IP55
Configuration
aluminum, squirrel-cage rotor
Efficiency classes
IE2
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial, for pump, for conveyors, for fans, for washing machines
Other characteristics
high-efficiency, IEC
Power

7.5 kW
(10.197 hp)

Intensity

9 A, 15.6 A

Torque

24.6 Nm
(18.144 ft.lb)

Rotational speed

2,915 rpm, 3,000 rpm
(18,315.49 rad.min-1, 18,849.56 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.6 Winding connection ∆/Y Starting current ratio [ 8.3 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 87.4 Rated output [HP] 10 Efficiency at 3/4 of full load [ 88.5 Service factor [ 1.0 Efficiency at rated (full) load [ 88.1 Duty S1 Efficiency at 5/4 of full load [ - Power factor at 1/4 of full load [ - Power factor at 2/4 of full load [ 0.56 Power factor at 3/4 of full load [ 0.70 Power factor at rated (full) load [ 0.79 Starting torque ratio [ 3.0 Power factor at 5/4 of full load [ -
