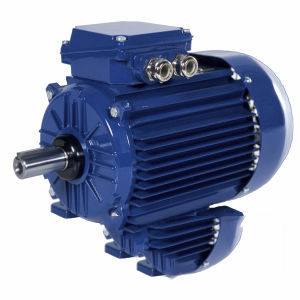

IE2 motor 2SIE132S2Bthree-phaseinduction690 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 400 V, 690 V
- Protection class
- IP55
- Configuration
- cast iron, squirrel-cage rotor
- Efficiency classes
- IE2
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial, for pump, for conveyors, for fans, for crane, for washing machines
- Other characteristics
- high-efficiency, IEC
- Power
7.5 kW
(10.197 hp)- Intensity
7.7 A, 13.2 A
- Torque
24.53 Nm
(18.0924 ft.lb)- Rotational speed
2,920 rpm, 3,000 rpm
(18,346.9 rad.min-1, 18,849.56 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 3.3
Winding connection ∆/Y
Starting current ratio [ 8.5
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 88.2
Rated output [HP] 10
Efficiency at 3/4 of full load [ 89.1
Service factor [ 1.0
Efficiency at rated (full) load [ 88.6
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.81
Power factor at 3/4 of full load [ 0.89
Power factor at rated (full) load [ 0.92
Starting torque ratio [ 2.7
Power factor at 5/4 of full load [ -
