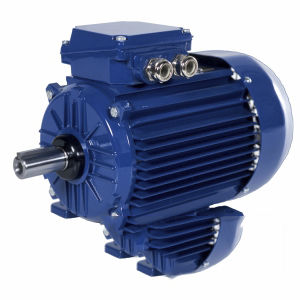

IE2 motor 2SIE132M2Athree-phaseinduction690 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 400 V, 690 V
- Protection class
- IP55
- Configuration
- cast iron, squirrel-cage rotor
- Efficiency classes
- IE2
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial, for pump, for conveyors, for fans, for crane, for washing machines
- Other characteristics
- high-efficiency
- Power
11 kW
(14.956 hp)- Intensity
11.3 A, 19.4 A
- Torque
36.1 Nm
(26.626 ft.lb)- Rotational speed
2,910 rpm, 3,000 rpm
(18,284.07 rad.min-1, 18,849.56 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 3.3
Winding connection ∆/Y
Starting current ratio [ 8.0
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 89.9
Rated output [HP] 15
Efficiency at 3/4 of full load [ 90.3
Service factor [ 1.0
Efficiency at rated (full) load [ 89.4
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.82
Power factor at 3/4 of full load [ 0.88
Power factor at rated (full) load [ 0.91
Starting torque ratio [ 2.8
Power factor at 5/4 of full load [ -
