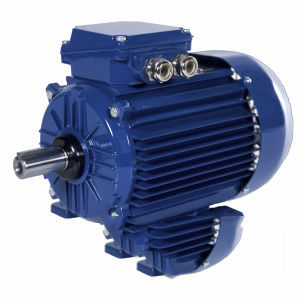

IE2 motor 2SIE355H6Cthree-phaseinduction690 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 400 V, 690 V
- Protection class
- IP55
- Configuration
- cast iron, squirrel-cage rotor
- Efficiency classes
- IE2
- Number of poles
- 6-pole
- Cooling mechanism
- IC411
- Applications
- industrial, for pump, for conveyors, for fans, for crane, for washing machines
- Other characteristics
- high-efficiency, IEC
- Power
315 kW
(428.281 hp)- Intensity
319 A, 552 A
- Torque
3,033 Nm
(2,237.026 ft.lb)- Rotational speed
992 rpm, 1,000 rpm
(6,232.92 rad.min-1, 6,283.19 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.2
Winding connection ∆ or Y
Starting current ratio [ 7.0
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 95.6
Rated output [HP] 420
Efficiency at 3/4 of full load [ 95.9
Service factor [ 1.0
Efficiency at rated (full) load [ 95.7
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.77
Power factor at 3/4 of full load [ 0.84
Power factor at rated (full) load [ 0.86
Starting torque ratio [ 1.9
Power factor at 5/4 of full load [ -
