IE1 motor Sh56X-2C
three-phaseinduction230 V

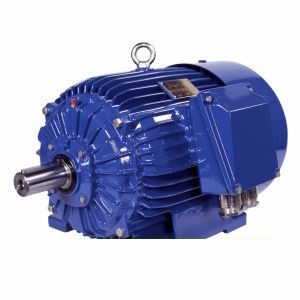

IE1 motor - Sh56X-2C - Cantoni Motor - three-phase / induction / 230 V
IE1 motor - Sh56X-2C - Cantoni Motor - three-phase / induction / 230 V
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 230 V
Protection class
IP55, IP54
Configuration
aluminum, squirrel-cage rotor
Efficiency classes
IE1
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
IEC, standard
Power

0.18 W
(0 hp)

Intensity

0.7 A, 1.2 A

Torque

0.6 Nm
(0.4425 ft.lb)

Rotational speed

2,840 rpm, 3,000 rpm
(17,844.25 rad.min-1, 18,849.56 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.7 Winding connection ∆/Y Starting current ratio [ 3.6 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 50.5 Rated output [HP] 0.25 Efficiency at 3/4 of full load [ 59.4 Service factor [ 1.0 Efficiency at rated (full) load [ 66.0 Duty S1 Efficiency at 5/4 of full load [ - Power factor at 1/4 of full load [ - Power factor at 2/4 of full load [ 0.38 Power factor at 3/4 of full load [ 0.48 Power factor at rated (full) load [ 0.60 Starting torque ratio [ 2.9 Power factor at 5/4 of full load [ -
