IE1 motor Sh63X-6C
three-phaseinduction400 V

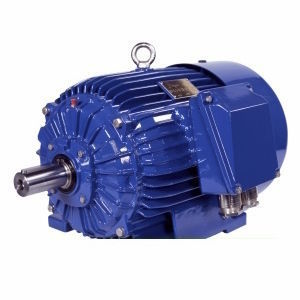

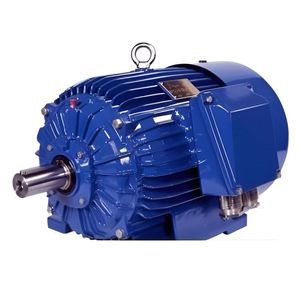

IE1 motor - Sh63X-6C - Cantoni Motor - three-phase / induction / 400 V
IE1 motor - Sh63X-6C - Cantoni Motor - three-phase / induction / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 380 V, 460 V, 230 V, 220 V, 265 V
Protection class
IP55, IP54
Configuration
aluminum, squirrel-cage rotor
Efficiency classes
IE1
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
IEC, standard
Power

150 W
(0.204 hp)

Intensity

1.1 A, 1.9 A

Torque

1.65 Nm
(1.21698 ft.lb)

Rotational speed

870 rpm, 1,000 rpm
(5,466.37 rad.min-1, 6,283.19 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 1.9 Winding connection ∆/Y Starting current ratio [ 1.8 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 30.2 % Rated output [HP] 0.20 Efficiency at 3/4 of full load [ 35.2% Service factor [ 1.0 Efficiency at rated (full) load [ 42.0% Duty S1 Power factor at 2/4 of full load [ 0.36 Power factor at 3/4 of full load [ 0.44 Power factor at rated (full) load [ 0.55 Starting torque ratio [ 1.9 Sound pressure level [dB] 50 Frame size 63 Sound power level [dB] 57 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62022Z Frequency converter supply yes Bearing on ND-side 62022Z
