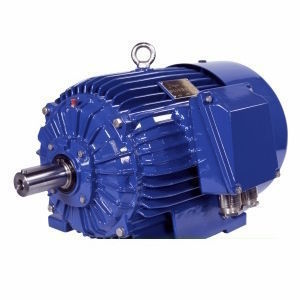

IE1 motor Sh90L-2three-phaseinduction230 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 400 V, 230 V
- Protection class
- IP55
- Configuration
- aluminum, squirrel-cage rotor
- Efficiency classes
- IE1
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- IEC, standard
- Power
2.2 kW
(2.991 hp)- Intensity
4.7 A, 8.1 A
- Torque
7.36 Nm
(5.4285 ft.lb)- Rotational speed
2,855 rpm, 3,000 rpm
(17,938.49 rad.min-1, 18,849.56 rad.min-1)
Description
Breakdown torque ratio [ 3.5
Winding connection ∆/Y
Starting current ratio [ 7.1
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 82.2
Rated output [HP] 3.0
Efficiency at 3/4 of full load [ 83.9
Service factor [ 1.0
Efficiency at rated (full) load [ 83.2
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.62
Power factor at 3/4 of full load [ 0.75
Power factor at rated (full) load [ 0.82
Starting torque ratio [ 3.4
Power factor at 5/4 of full load [ -
