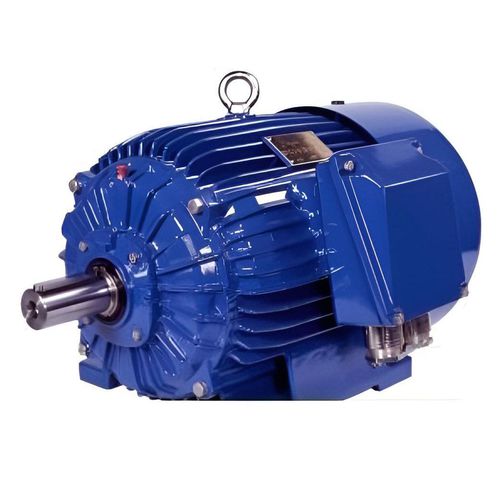

IE1 motor Sg100L-2
three-phaseinduction230 V

IE1 motor
IE1 motor
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 230 V
Protection class
IP55
Configuration
aluminum, squirrel-cage rotor
Efficiency classes
IE1
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
IEC, standard
Power

3 kW
(4.079 hp)

Intensity

6 A, 10.5 A

Torque

9.86 Nm
(7.2724 ft.lb)

Rotational speed

2,905 rpm, 3,000 rpm
(18,252.65 rad.min-1, 18,849.56 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.8 Winding connection ∆/Y Starting current ratio [ 7.5 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 80.9 Rated output [HP] 4.0 Efficiency at 3/4 of full load [ 83.2 Service factor [ 1.0 Efficiency at rated (full) load [ 83.4 Duty S1 Efficiency at 5/4 of full load [ - Power factor at 1/4 of full load [ - Power factor at 2/4 of full load [ 0.69 Power factor at 3/4 of full load [ 0.80 Power factor at rated (full) load [ 0.86 Starting torque ratio [ 2.7 Power factor at 5/4 of full load [ -
