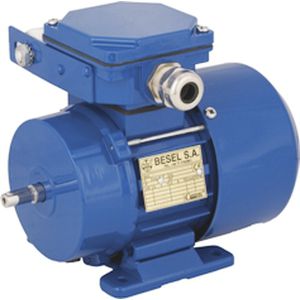

Single-phase motor SEMh63-4Ainduction230 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- induction
- Voltage
- 230 V
- Protection class
- IP55, IP54
- Configuration
- aluminum
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- IEC
- Power
90 W
(0.122 hp)- Intensity
1.1 A
- Torque
0.63 Nm
(0.4647 ft.lb)- Rotational speed
1,330 rpm
(8,356.64 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Rated voltage [V] 230
Breakdown torque ratio [ 1.8
Winding connection -
Starting current ratio [ 1.7
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Rated output [kW] 0.09
Efficiency at 2/4 of full load [ -
Rated output [HP] 0.12
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 44.0
Duty S1
Efficiency at 5/4 of full load [ -
Rated current [A] 1.1
Power factor at 1/4 of full load [ -
Synchronous speed [rpm] 1500
Power factor at 2/4 of full load [ -
Rated speed [rpm] 1330
Power factor at 3/4 of full load [ -
Rated torque [Nm] 0.63
Power factor at rated (full) load [ 0.83
Starting torque ratio [ 1.1
Power factor at 5/4 of full load [ -
