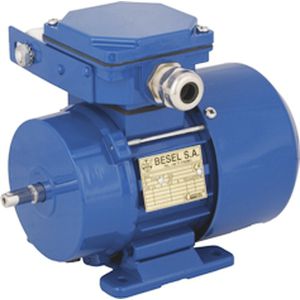

Single-phase motor SEh63-4Binduction230 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- induction
- Voltage
- 230 V
- Protection class
- IP55, IP54
- Configuration
- aluminum
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- IEC
- Power
180 W
(0.245 hp)- Intensity
1.5 A
- Torque
1.23 Nm
(0.9072 ft.lb)- Rotational speed
1,400 rpm
(8,796.46 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 1.4
Winding connection -
Starting current ratio [ 1.9
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ -
Rated output [HP] 0.25
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 57.0
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ -
Power factor at 3/4 of full load [ -
Power factor at rated (full) load [ 0.95
Starting torque ratio [ 0.7
Power factor at 5/4 of full load [ -
