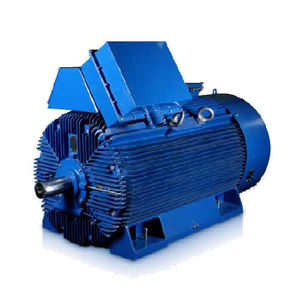

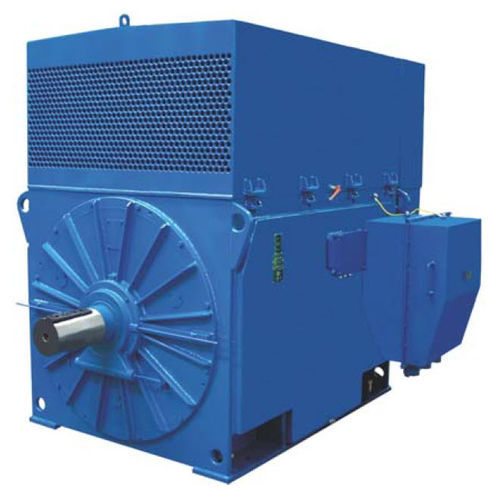

High-voltage motor Sf315Y4three-phasesynchronous6000 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 6000 V
- Protection class
- IP54
- Configuration
- squirrel cage
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
250 kW
(339.905 hp)- Intensity
29.3 A
- Torque
1,608 Nm
(1,185.9999 ft.lb)- Rotational speed
1,485 rpm
(9,330.53 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Rated voltage [V] 6000
Breakdown torque ratio [ 2.8
Winding connection Y
Starting current ratio [ 6
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Rated output [kW] 250
Efficiency at 2/4 of full load [ -
Rated output [HP] 340
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 94.3
Duty S1
Efficiency at 5/4 of full load [ -
Rated current [A] 29.3
Power factor at 1/4 of full load [ -
Synchronous speed [rpm] 1500
Power factor at 2/4 of full load [ -
Rated speed [rpm] 1485
Power factor at 3/4 of full load [ -
Rated torque [Nm] 1608
Power factor at rated (full) load [ 0.87
Starting torque ratio [ 1.3
Power factor at 5/4 of full load [ -
