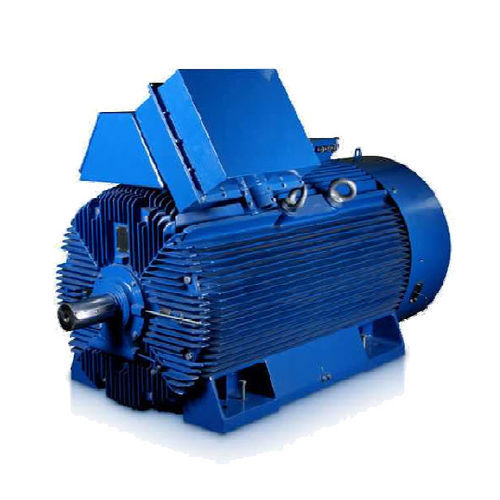

High-voltage motor Sh355H2Athree-phasesynchronous6000 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 6000 V
- Protection class
- IP55
- Configuration
- squirrel cage, cast iron
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage
- Power
160 kW
(217.539 hp)- Intensity
18.3 A
- Torque
513 Nm
(378.3694 ft.lb)- Rotational speed
2,978 rpm
(18,711.33 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.7
Winding connection Y
Starting current ratio [ 6.6
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ -
Rated output [HP] 220
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 94.8
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ -
Power factor at 3/4 of full load [ -
Power factor at rated (full) load [ 0.89
Starting torque ratio [ 1.2
Power factor at 5/4 of full load [ -
