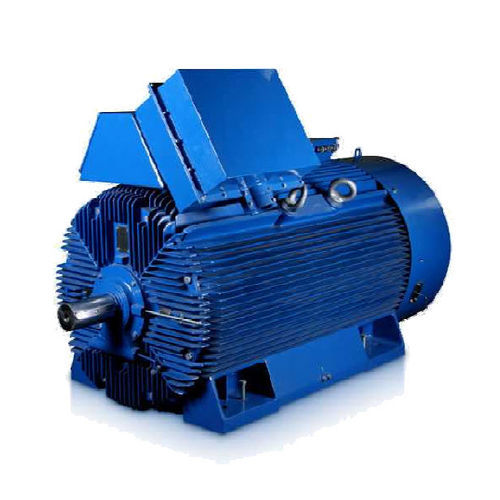

High-voltage motor Sh400H4Cthree-phasesynchronous6000 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 6000 V
- Protection class
- IP55
- Configuration
- cast iron
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
400 kW
(543.848 hp)- Intensity
48 A
- Torque
2,562 Nm
(1,889.6342 ft.lb)- Rotational speed
1,491 rpm
(9,368.23 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.8
Winding connection Y
Starting current ratio [ 7.3
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ -
Rated output [HP] 540
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 96.6
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Synchronous speed [rpm] 1500
Power factor at 2/4 of full load [ -
Power factor at 3/4 of full load [ -
Power factor at rated (full) load [ 0.83
Starting torque ratio [ 1.4
Power factor at 5/4 of full load [ -
