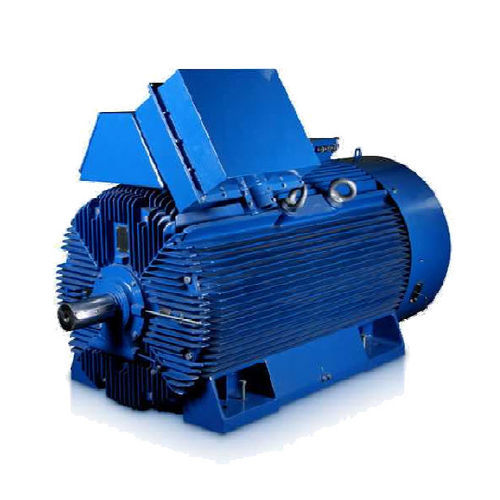

High-voltage motor Sh500H2Cthree-phasesynchronous6000 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 6000 V
- Protection class
- IP55
- Configuration
- squirrel cage, cast iron
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
1,120 kW
(1,522.776 hp)- Intensity
125 A
- Torque
3,580 Nm
(2,640.4725 ft.lb)- Rotational speed
2,988 rpm
(18,774.16 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.1
Winding connection Y
Starting current ratio [ 5.9
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ -
Rated output [HP] 1500
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 97.3
Duty S1
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Synchronous speed [rpm] 3000
Power factor at 2/4 of full load [ -
Power factor at 3/4 of full load [ -
Power factor at rated (full) load [ 0.89
Starting torque ratio [ 0.6
Power factor at 5/4 of full load [ -
