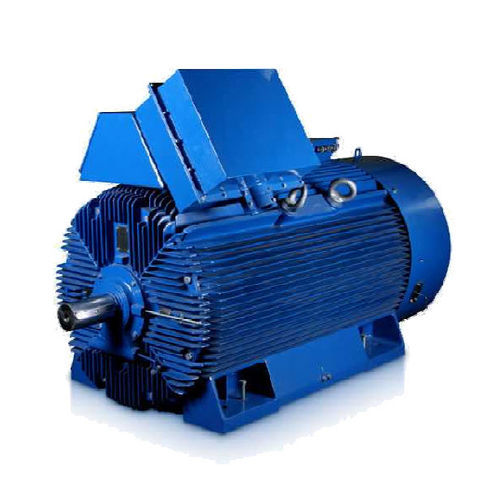

High-voltage motor Sh560H10Bthree-phasesynchronous6000 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 6000 V
- Protection class
- IP55
- Configuration
- squirrel cage, cast iron
- Number of poles
- 10-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- high-voltage, IEC
- Power
800 kW
(1,087.697 hp)- Intensity
96.4 A
- Torque
12,884 Nm
(9,502.7507 ft.lb)- Rotational speed
593 rpm
(3,725.93 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Rated voltage [V] 6000
Breakdown torque ratio [ 2
Winding connection Y
Starting current ratio [ 5.8
Frequency [Hz] 50
Efficiency at 1/4 of full load [ -
Rated output [kW] 800
Efficiency at 2/4 of full load [ -
Rated output [HP] 1080
Efficiency at 3/4 of full load [ -
Service factor [ 1.0
Efficiency at rated (full) load [ 96.3
Duty S1
Efficiency at 5/4 of full load [ -
Rated current [A] 96.4
Power factor at 1/4 of full load [ -
Synchronous speed [rpm] 600
Power factor at 2/4 of full load [ -
Rated speed [rpm] 593
Power factor at 3/4 of full load [ -
Rated torque [Nm] 12884
Power factor at rated (full) load [ 0.83
Starting torque ratio [ 1
Power factor at 5/4 of full load [ -
