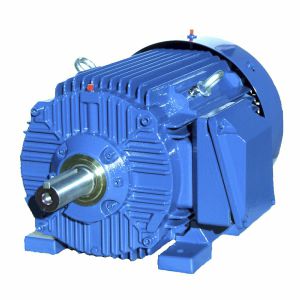

NEMA motor SIE447TS2Bthree-phaseinduction460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 460 V
- Protection class
- IP55
- Configuration
- cast iron, squirrel-cage rotor
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- NEMA, high-efficiency
- Power
186 kW
(252.89 hp)- Intensity
263 A
- Torque
497.6 Nm
(367.0109 ft.lb)- Rotational speed
3,579 rpm, 3,600 rpm
(22,487.52 rad.min-1, 22,619.47 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.7
Winding connection ∆
Starting current ratio [ 7.3
Frequency [Hz] 60
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 96.1
Rated output [HP] 250
Efficiency at 3/4 of full load [ 96.2
Service factor [ 1.2
Efficiency at rated (full) load [ 95.8
Duty continuous
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.89
Power factor at 3/4 of full load [ 0.92
Power factor at rated (full) load [ 0.93
Starting torque ratio [ 1.8
Power factor at 5/4 of full load [ -
Starting current [A] 1912
Rated torque [Lb-Ft] 367
