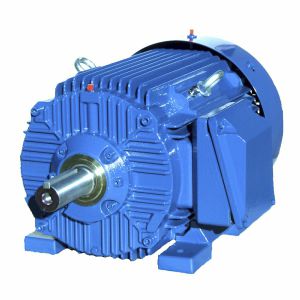

Three-phase motor SIE447T4Binduction460 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- induction
- Voltage
- 460 V
- Protection class
- IP55
- Configuration
- cast iron, squirrel-cage rotor
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Other characteristics
- NEMA, high-efficiency
- Power
186 kW
(252.89 hp)- Intensity
267 A
- Torque
996.5 Nm
(734.9807 ft.lb)- Rotational speed
1,788 rpm, 1,800 rpm
(11,234.34 rad.min-1, 11,309.73 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2
Winding connection ∆
Starting current ratio [ 6.8
Frequency [Hz] 60
Efficiency at 1/4 of full load [ -
Efficiency at 2/4 of full load [ 96.5
Rated output [HP] 250
Efficiency at 3/4 of full load [ 96.6
Service factor [ 1.2
Efficiency at rated (full) load [ 96.2
Duty continuous
Efficiency at 5/4 of full load [ -
Power factor at 1/4 of full load [ -
Power factor at 2/4 of full load [ 0.85
Power factor at 3/4 of full load [ 0.90
Power factor at rated (full) load [ 0.91
Starting torque ratio [ 1.6
Power factor at 5/4 of full load [ -
Starting current [A] 1825
Rated torque [Lb-Ft] 735
