Three-phase motor dSg100L4A
synchronous1000 VIP54

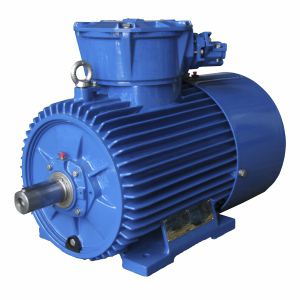

Three-phase motor - dSg100L4A - Cantoni Motor - synchronous / 1000 V / IP54
Three-phase motor - dSg100L4A - Cantoni Motor - synchronous / 1000 V / IP54
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
1000 V
Protection class
IP54, explosion-proof
Configuration
cast iron, squirrel-cage rotor
Number of poles
4-pole
Cooling mechanism
IC411
Applications
for the mining industry
Other characteristics
IEC
Power

2.2 kW
(2.991 hp)

Intensity

1.9 A

Torque

14.7 Nm
(10.8422 ft.lb)

Rotational speed

1,425 rpm
(8,953.54 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Winding connection Y Starting current ratio [ 5.9 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 76.0 Rated output [HP] 3 Efficiency at 3/4 of full load [ 79.4 Service factor [ 1.0 Efficiency at rated (full) load [ 81.0 Duty S1 Synchronous speed [rpm] 1500 Power factor at 2/4 of full load [ 0.61 Power factor at 3/4 of full load [ 0.74 Power factor at rated (full) load [ 0.81 Starting torque ratio [ 2.5 Frame size 100 Sound power level [dB] 71 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side 62062Z Frequency converter supply on demand Bearing on ND-side 62062Z Mounting arrangement IMB3/B5/B35 Bearings regreasing no
