Three-phase motor dSg160M6-EP
synchronous1000 VATEX

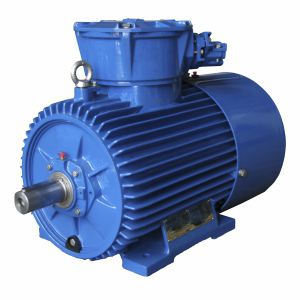

Three-phase motor - dSg160M6-EP - Cantoni Motor - synchronous / 1000 V / ATEX
Three-phase motor - dSg160M6-EP - Cantoni Motor - synchronous / 1000 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
1000 V
Protection class
IP55, ATEX, explosion-proof
Configuration
cast iron, squirrel-cage rotor
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for the mining industry
Other characteristics
IEC
Power

7.5 kW
(10.197 hp)

Intensity

6.1 A

Torque

74 Nm
(54.5796 ft.lb)

Rotational speed

962 rpm
(6,044.42 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Breakdown torque ratio [ 3 Winding connection Y Starting current ratio [ 6.4 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 85.3 Rated output [HP] 10 Efficiency at 3/4 of full load [ 86.8 Service factor [ 1.0 Efficiency at rated (full) load [ 87.5 Duty S1 Synchronous speed [rpm] 1000 Power factor at 2/4 of full load [ 0.61 Power factor at 3/4 of full load [ 0.73 Power factor at rated (full) load [ 0.81 Starting torque ratio [ 2.2 Sound pressure level [dB] 55 Frame size 160 Sound power level [dB] 65 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side 63092Z Frequency converter supply on demand Bearing on ND-side 63092Z Mounting arrangement IMB3/B5/B35 Bearings regreasing no
