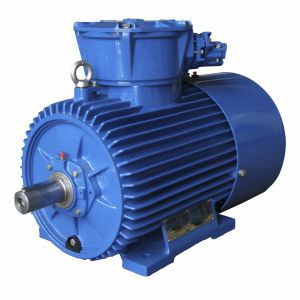

Three-phase motor dSg280S4-EPsynchronous1000 VATEX
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 1000 V
- Protection class
- IP55, ATEX, explosion-proof
- Configuration
- cast iron, squirrel-cage rotor
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- for the mining industry
- Other characteristics
- IEC
- Power
75 kW
(101.972 hp)- Intensity
51 A
- Torque
482 Nm
(355.505 ft.lb)- Rotational speed
1,485 rpm
(9,330.53 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.5
Winding connection Y
Starting current ratio [ 7.3
Frequency [Hz] 50
Efficiency at 2/4 of full load [ 92.5
Rated output [HP] 100
Efficiency at 3/4 of full load [ 94.2
Service factor [ 1.0
Efficiency at rated (full) load [ 94.2
Duty S1
Synchronous speed [rpm] 1500
Power factor at 2/4 of full load [ 0.84
Power factor at 3/4 of full load [ 0.89
Power factor at rated (full) load [ 0.90
Starting torque ratio [ 2.5
Sound pressure level [dB] 75
Frame size 280
Sound power level [dB] 85
Terminal box position top
Starting method DOL
Possibility of terminal box rotation no
Insulation class F
Bearing on D-side NU317
Frequency converter supply on demand
Bearing on ND-side 6317C3
Mounting arrangement IMB3/B5/B35
Bearings regreasing yes
