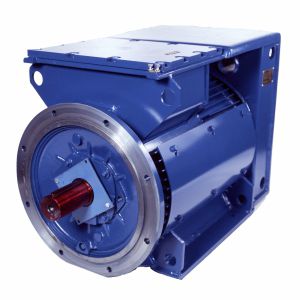

Three-phase motor 3SGf250M2A-E

synchronous500 Vexplosion-proof

Breakdown torque ratio [ 2 Winding connection Y Starting current ratio [ 6.6 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 92.2 Rated output [HP] 60 Efficiency at 3/4 of full load [ 93.3 Service factor [ 1.0 Efficiency at rated (full) load [ 93.3 Duty S1/S4 Rated current [A] 63 Power factor at 2/4 of full load [ 0.84 Rated speed [rpm] 2962 Power factor at 3/4 of full load [ 0.87 Power factor at rated (full) load [ 0.89 Starting torque ratio [ 2.3 Sound pressure level [dB] 85 Frame size 250 Sound power level [dB] 95 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side NU 315 Frequency converter supply on demand Bearing on ND-side 6315 C3 Mounting arrangement IMB35 Bearings regreasing yes Housing - material steel
