Three-phase motor 3SGf250M6-E
synchronous500 VATEX

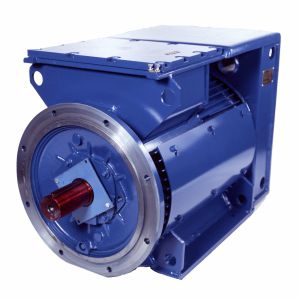

Three-phase motor - 3SGf250M6-E - Cantoni Motor - synchronous / 500 V / ATEX
Three-phase motor - 3SGf250M6-E - Cantoni Motor - synchronous / 500 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
500 V
Protection class
IP56, ATEX, explosion-proof
Configuration
squirrel-cage rotor
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for conveyors, for the mining industry
Other characteristics
IEC
Power

45 kW
(61.183 hp)

Intensity

64 A

Torque

439 Nm
(323.7898 ft.lb)

Rotational speed

980 rpm
(6,157.52 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2 Winding connection Y Starting current ratio [ 6.6 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 92.8 Rated output [HP] 60 Efficiency at 3/4 of full load [ 92.8 Service factor [ 1.0 Efficiency at rated (full) load [ 92.0 Duty S1/S4 Power factor at 2/4 of full load [ 0.81 Rated speed [rpm] 980 Power factor at 3/4 of full load [ 0.86 Power factor at rated (full) load [ 0.88 Starting torque ratio [ 2.6 Sound pressure level [dB] 66 Frame size 250 Sound power level [dB] 76 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side NU 315 Frequency converter supply on demand Bearing on ND-side 6315 C3 Mounting arrangement IMB35 Bearings regreasing yes
