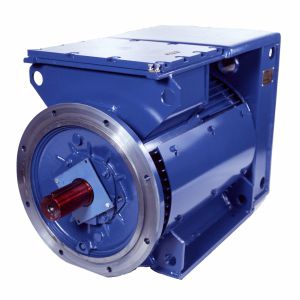

Three-phase motor 3SGf315M4-Esynchronous500 VATEX
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 500 V
- Protection class
- IP56, ATEX, explosion-proof
- Number of poles
- 4-pole
- Cooling mechanism
- IC411
- Applications
- for conveyors, for the mining industry
- Other characteristics
- IEC
- Power
132 kW
(179.47 hp)- Intensity
179 A
- Torque
853 Nm
(629.1405 ft.lb)- Rotational speed
1,480 rpm
(9,299.11 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Breakdown torque ratio [ 2.2
Winding connection Y
Starting current ratio [ 5.9
Frequency [Hz] 50
Efficiency at 2/4 of full load [ 94.7
Rated output [HP] 175
Efficiency at 3/4 of full load [ 94.8
Service factor [ 1.0
Efficiency at rated (full) load [ 94.5
Duty S1/S4
Rated current [A] 179
Power factor at 2/4 of full load [ 0.83
Power factor at 3/4 of full load [ 0.88
Power factor at rated (full) load [ 0.90
Starting torque ratio [ 2.5
Sound pressure level [dB] 81
Frame size 315
Sound power level [dB] 91
Terminal box position top
Starting method DOL
Possibility of terminal box rotation no
Insulation class F
Bearing on D-side NU 318
Frequency converter supply on demand
Bearing on ND-side 6318 C3
Mounting arrangement IMB35
Bearings regreasing yes
