Three-phase motor ExSh90S-2-3G T4
synchronous400 VATEX

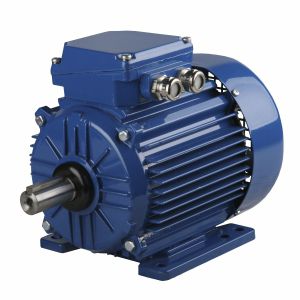

Three-phase motor - ExSh90S-2-3G T4 - Cantoni Motor - synchronous / 400 V / ATEX
Three-phase motor - ExSh90S-2-3G T4 - Cantoni Motor - synchronous / 400 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP55, ATEX, antispark
Configuration
aluminum, squirrel cage
Number of poles
2-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

1 kW
(1.36 hp)

Torque

3.3 Nm
(2.434 ft.lb)

Rotational speed

2,895 rpm
(18,189.82 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 4.1 Winding connection Y Starting current ratio [ 7.5 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 76.4 Rated output [HP] 1.36 Efficiency at 3/4 of full load [ 79.3 Service factor [ 1.0 Efficiency at rated (full) load [ 79.6 Duty S1 Power factor at 2/4 of full load [ 0.56 Power factor at 3/4 of full load [ 0.70 Power factor at rated (full) load [ 0.78 Starting torque ratio [ 3.8 Sound pressure level [dB] 68 Frame size 90 Sound power level [dB] 78 Terminal box position top Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62052Z Frequency converter supply on demand Bearing on ND-side 62052Z Mounting arrangement IMB3/B5/B35/B14 Bearings regreasing no
