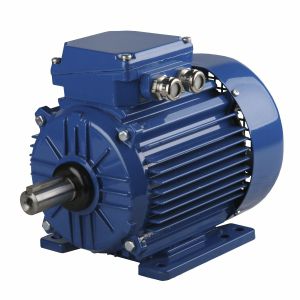

Three-phase motor ExSh90S-4-3G T3
synchronous400 VATEX

Three-phase motor - ExSh90S-4-3G T3 - Cantoni Motor - synchronous / 400 V / ATEX
Three-phase motor - ExSh90S-4-3G T3 - Cantoni Motor - synchronous / 400 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP55, ATEX, antispark
Configuration
aluminum, squirrel cage
Number of poles
4-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

1.1 kW
(1.496 hp)

Intensity

2.6 A

Torque

7.48 Nm
(5.517 ft.lb)

Rotational speed

1,405 rpm
(8,827.88 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.8 Winding connection ∆ Starting current ratio [ 4.9 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 70.6 Rated output [HP] 1.5 Efficiency at 3/4 of full load [ 74.9 Service factor [ 1.0 Efficiency at rated (full) load [ 76.7 Duty S1 Rated current [A] 2.6 Power factor at 2/4 of full load [ 0.61 Power factor at 3/4 of full load [ 0.74 Power factor at rated (full) load [ 0.80 Starting torque ratio [ 2.2 Power factor at 5/4 of full load [ Sound pressure level [dB] 56 Frame size 90 Sound power level [dB] 66 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62052Z Frequency converter supply on demand Bearing on ND-side 62052Z
