Three-phase motor ExSg132S-6-3G T4
synchronous400 VATEX

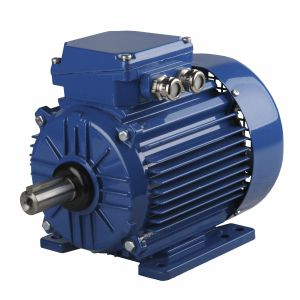

Three-phase motor - ExSg132S-6-3G T4 - Cantoni Motor - synchronous / 400 V / ATEX
Three-phase motor - ExSg132S-6-3G T4 - Cantoni Motor - synchronous / 400 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP55, ATEX, antispark
Configuration
squirrel cage, cast iron
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

2.2 kW
(2.991 hp)

Intensity

5.1 A

Torque

21.89 Nm
(16.1452 ft.lb)

Rotational speed

960 rpm
(6,031.86 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Breakdown torque ratio [ 3 Winding connection ∆ Starting current ratio [ 5.9 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 77.6 Rated output [HP] 3 Efficiency at 3/4 of full load [ 80.4 Service factor [ 1.0 Efficiency at rated (full) load [ 80.7 Duty S1 Rated current [A] 5.1 Power factor at 2/4 of full load [ 0.57 Power factor at 3/4 of full load [ 0.70 Power factor at rated (full) load [ 0.78 Starting torque ratio [ 2.3 Sound pressure level [dB] 62 Frame size 132 Sound power level [dB] 73 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63082Z Frequency converter supply on demand Bearing on ND-side 63082Z Mounting arrangement IMB3/B5/B35/B14 Bearings regreasing yes Housing - material cast iron
