Three-phase motor ExSg180L-6-3G T3
synchronous400 VATEX

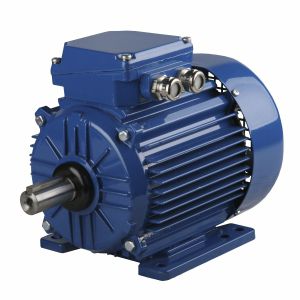

Three-phase motor - ExSg180L-6-3G T3 - Cantoni Motor - synchronous / 400 V / ATEX
Three-phase motor - ExSg180L-6-3G T3 - Cantoni Motor - synchronous / 400 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP55, ATEX, antispark
Configuration
squirrel cage, cast iron
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

13.5 kW
(18.355 hp)

Intensity

29 A

Torque

132.23 Nm
(97.5278 ft.lb)

Rotational speed

975 rpm
(6,126.11 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 2.4 Winding connection ∆ Starting current ratio [ 6 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 87.1 Rated output [HP] 18.1 Efficiency at 3/4 of full load [ 89.3 Service factor [ 1.0 Efficiency at rated (full) load [ 89.0 Duty S1 Synchronous speed [rpm] 3000 Power factor at 2/4 of full load [ 0.67 Power factor at 3/4 of full load [ 0.78 Power factor at rated (full) load [ 0.84 Starting torque ratio [ 2.8 Sound pressure level [dB] 65 Frame size 180 Sound power level [dB] 76 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63112Z Frequency converter supply on demand Bearing on ND-side 63112Z Mounting arrangement IMB3/B5/B35/B14 Bearings regreasing yes
