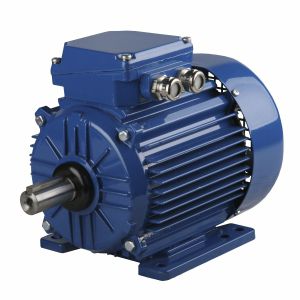

Three-phase motor ExSh56-2A T3synchronous400 VATEX
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 400 V
- Protection class
- IP66, ATEX, increased safety
- Configuration
- aluminum, squirrel cage
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- for the chemical industry
- Power
90 W
(0.122 hp)- Intensity
0.4 A
- Torque
0.31 Nm
(0.2286 ft.lb)- Rotational speed
2,760 rpm
(17,341.59 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.5
Winding connection Y
Starting current ratio [ 3.1
Frequency [Hz] 50
Rated output [HP] 0.12
Service factor [ 1.0
Efficiency at rated (full) load [ 54.0
Duty S1
Rated current [A] 0.4
Synchronous speed [rpm] 3000
Rated torque [Nm] 0.31
Power factor at rated (full) load [ 0.60
Starting torque ratio [ 2.6
Frame size 56
Terminal box position top
Starting method DOL
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side 62012Z
Frequency converter supply no
Bearing on ND-side 62012Z
