Three-phase motor (E)CSg132M6B
synchronous400 VATEX

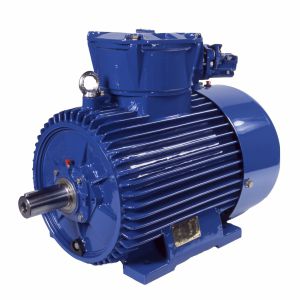

Three-phase motor - (E)CSg132M6B - Cantoni Motor - synchronous / 400 V / ATEX
Three-phase motor - (E)CSg132M6B - Cantoni Motor - synchronous / 400 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP54, ATEX, explosion-proof, flameproof
Configuration
squirrel cage, cast iron
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

5.5 kW
(7.478 hp)

Intensity

11.9 A

Torque

55 Nm
(40.5659 ft.lb)

Rotational speed

950 rpm
(5,969.03 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 50 °C
(122 °F)

Description

Breakdown torque ratio [ 3.1 Winding connection Y Starting current ratio [ 6.3 Frequency [Hz] 50 Rated output [HP] 7.5 Service factor [ 1.0 Efficiency at rated (full) load [ 84.7 Duty S1 Synchronous speed [rpm] 1000 Power factor at rated (full) load [ 0.79 Starting torque ratio [ 2.7 Frame size 132 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side 63082Z Frequency converter supply on request - execution (-f) Bearing on ND-side 63082Z Mounting arrangement IMB3/B5/B35 Bearings regreasing no
