Three-phase motor ExSh90S-2-2G T4/2D
synchronous400 VATEX

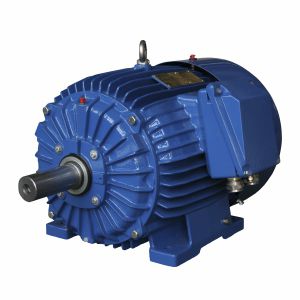

Three-phase motor - ExSh90S-2-2G T4/2D - Cantoni Motor - synchronous / 400 V / ATEX
Three-phase motor - ExSh90S-2-2G T4/2D - Cantoni Motor - synchronous / 400 V / ATEX
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP66, ATEX, dust-proof
Configuration
aluminum, squirrel cage
Number of poles
2-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

1 kW
(1.36 hp)

Intensity

2.3 A

Torque

3.3 Nm
(2.434 ft.lb)

Rotational speed

2,895 rpm
(18,189.82 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Breakdown torque ratio [ 4.1 Winding connection Y Starting current ratio [ 7.5 Frequency [Hz] 50 Efficiency at 1/4 of full load [ - Efficiency at 2/4 of full load [ 74.5 Rated output [HP] 1.36 Efficiency at 3/4 of full load [ 78.7 Service factor [ 1.0 Efficiency at rated (full) load [ 79.6 Duty S1 Synchronous speed [rpm] 3000 Power factor at 2/4 of full load [ 0.56 Power factor at 3/4 of full load [ 0.70 Rated torque [Nm] 3.3 Power factor at rated (full) load [ 0.78 Starting torque ratio [ 3.8
