Motor with slip ring 2SUg200L4A
three-phasesynchronous400 V

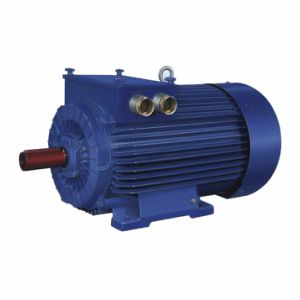

Motor with slip ring - 2SUg200L4A - Cantoni Motor - three-phase / synchronous / 400 V
Motor with slip ring - 2SUg200L4A - Cantoni Motor - three-phase / synchronous / 400 V
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
synchronous
Voltage
400 V
Protection class
IP55
Configuration
cast iron, with slip ring
Number of poles
4-pole
Cooling mechanism
IC411
Other characteristics
high-inertia, IEC
Power

18.5 kW
(25.153 hp)

Intensity

34.5 A

Torque

121 Nm
(89.245 ft.lb)

Rotational speed

1,455 rpm
(9,142.03 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.8 Winding connection Y Frequency [Hz] 50 Rated output [HP] 25 Service factor [ 1.0 Efficiency at rated (full) load [ 89.6 Duty S1 Synchronous speed [rpm] 1500 Power factor at rated (full) load [ 0.87 Frame size 200 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side 6312C3 Frequency converter supply on demand Bearing on ND-side 6312C3 Mounting arrangement IMB3/B5/B35 Bearings regreasing yes
