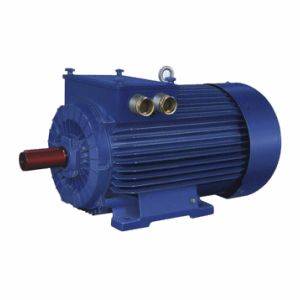

Motor with slip ring 2SUg200L8three-phasesynchronous400 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 400 V
- Protection class
- IP55
- Configuration
- cast iron, with slip ring
- Number of poles
- 8-pole
- Cooling mechanism
- IC411
- Other characteristics
- high-inertia, IEC
- Power
11 kW
(14.956 hp)- Intensity
23.9 A
- Torque
147 Nm
(108.4216 ft.lb)- Rotational speed
717 rpm
(4,505.04 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.6
Winding connection Y
Frequency [Hz] 50
Rated output [HP] 15
Service factor [ 1.0
Efficiency at rated (full) load [ 86.3
Duty S1
Synchronous speed [rpm] 750
Power factor at rated (full) load [ 0.77
Frame size 200
Terminal box position top
Starting method DOL
Possibility of terminal box rotation no
Insulation class F
Bearing on D-side 6212C3
Frequency converter supply on demand
Bearing on ND-side 6212C3
Mounting arrangement IMB3/B5/B35
Bearings regreasing yes
