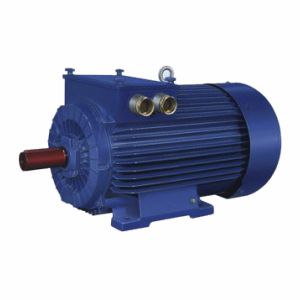

Motor with slip ring 2SUg250M8Bthree-phasesynchronous400 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 400 V
- Protection class
- IP55
- Configuration
- cast iron, with slip ring
- Number of poles
- 8-pole
- Cooling mechanism
- IC411
- Other characteristics
- high-inertia, IEC
- Power
30 kW
(40.789 hp)- Intensity
66 A
- Torque
391 Nm
(288.3868 ft.lb)- Rotational speed
732 rpm
(4,599.29 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 3.1
Winding connection Y
Frequency [Hz] 50
Rated output [HP] 40
Service factor [ 1.0
Efficiency at rated (full) load [ 89.3
Duty S1
Synchronous speed [rpm] 750
Power factor at rated (full) load [ 0.74
Frame size 250
Terminal box position top
Starting method DOL
Possibility of terminal box rotation no
Insulation class F
Bearing on D-side 6215C3
Frequency converter supply on demand
Bearing on ND-side 6215C3
Mounting arrangement IMB3/B5/B35
Bearings regreasing yes
