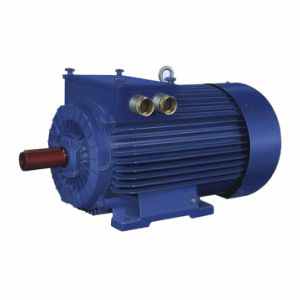

Motor with slip ring 2SUg280M6three-phasesynchronous400 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 400 V
- Protection class
- IP55
- Configuration
- cast iron, with slip ring
- Number of poles
- 6-pole
- Cooling mechanism
- IC411
- Other characteristics
- high-inertia, IEC
- Power
55 kW
(74.779 hp)- Intensity
105 A
- Torque
539 Nm
(397.546 ft.lb)- Rotational speed
975 rpm
(6,126.11 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 3.5
Winding connection Y
Frequency [Hz] 50
Rated output [HP] 75
Service factor [ 1.0
Efficiency at rated (full) load [ 91.8
Duty S1
Synchronous speed [rpm] 1000
Power factor at rated (full) load [ 0.82
Frame size 280
Terminal box position top
Starting method DOL
Possibility of terminal box rotation no
Insulation class F
Bearing on D-side 6217C3
Frequency converter supply on demand
Bearing on ND-side 6217C3
Mounting arrangement IMB3/B5/B35
Bearings regreasing yes
