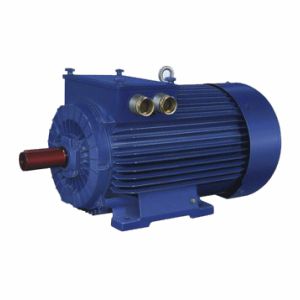

Motor with slip ring SUg355M10Bthree-phasesynchronous380 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- synchronous
- Voltage
- 380 V
- Protection class
- IP55
- Configuration
- cast iron, with slip ring
- Number of poles
- 10-pole
- Cooling mechanism
- IC411
- Other characteristics
- high-inertia, IEC
- Power
132 kW
(179.47 hp)- Intensity
275 A
- Torque
2,144 Nm
(1,581.3332 ft.lb)- Rotational speed
588 rpm
(3,694.51 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.7
Winding connection ∆
Frequency [Hz] 50
Rated output [HP] 180
Service factor [ 1.0
Efficiency at rated (full) load [ 93.5
Duty S1
Synchronous speed [rpm] 600
Power factor at rated (full) load [ 0.78
Frame size 355
Terminal box position on right side
Starting method DOL
Possibility of terminal box rotation no
Insulation class F
Bearing on D-side NU322EM1
Frequency converter supply no
Bearing on ND-side 6322C3
Mounting arrangement IMB3
Bearings regreasing yes
