ATEX motor (E)cSTe(b)315 series
three-phaseinduction400 V

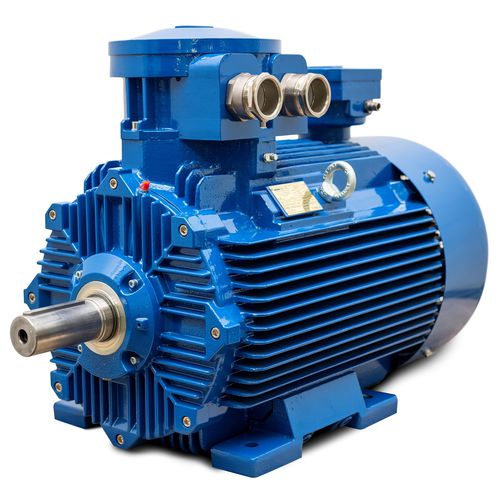

ATEX motor - (E)cSTe(b)315 series - Cantoni Motor - three-phase / induction / 400 V
ATEX motor - (E)cSTe(b)315 series - Cantoni Motor - three-phase / induction / 400 V
Add to favorites
Compare this product

Go to the Cantoni Motor website for more information

Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V
Protection class
IP55, ATEX, explosion-proof, flameproof, increased safety
Configuration
squirrel cage, cast iron, squirrel-cage rotor, cast iron frame, with cast iron flange, vertical
Efficiency classes
IE3
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Cooling mechanism
air-cooled, IC411, forced air-cooled, air-cooled
Applications
for conveyors, industrial, for pump, agricultural, oil & gas rigs, for centrifugal pumps, for machine tools, packaging machine, for air compressors, for wood-processing machines, oil pump, for drills, for water pumps, for fans, for crusher, for compressors, for the chemical industry, for crane, heavy-duty, for winches, for lifting applications, for the mining industry, for cutting machine, for the oil and gas industry
Other characteristics
custom, high-efficiency, IEC
Power

Min.: 55 kW
(74.779 hp)

Max.: 200 kW
(271.924 hp)

Intensity

Min.: 107 A

Max.: 333 A

Torque

Min.: 353 Nm
(260.3594 ft.lb)

Max.: 1,706 Nm
(1,258.281 ft.lb)

Rotational speed

Min.: 750 rpm
(4,712.39 rad.min-1)

Max.: 3,000 rpm
(18,849.56 rad.min-1)

Diameter

315 mm
(12.4 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

One speed explosion-proof motors according to IEC 60079-0, IEC 60079-1 and IEC 60079-7 standard with ATEX certificate. Motors are designed to equipment installed in rooms and areas (zone 1 or 2), in which explosive mixtures of combustible gas and vapour with air, classified as group II, temperature class T5 (maximum surface temperature below 100°C) or lower, may appear
