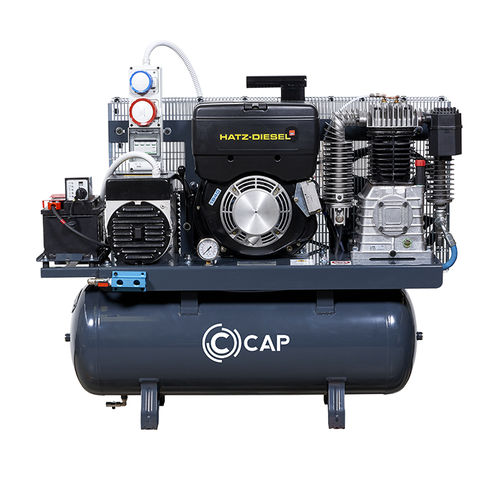

Piston compressor ARCO100-MTairdiesel-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- diesel-powered
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 380 V, 220 V
- Other characteristics
- tank-mounted, two-stage
- Tank volume
100 l
(26.4 gal)- Pressure
Min.: 10 bar
(145.04 psi)Max.: 12 bar
(174.05 psi)- Flow
800 l/min
(211.34 us gal/min)- Power
10.2 ch
(10.2 hp)- Length
1,350 mm
(53 in)- Width
550 mm
(22 in)- Height
1,050 mm
(41 in)- Weight
180 kg
(396.8 lb)
Description
Practical, functional and versatile. The Multienergy Diesel motorized machine in the ARCO series can be customized with a single-phase and three-phase current generator, with or without an AVR stabilizer.
GENERATOR MONO - 220 V - 6.5 kVA
GENERATOR THREE - 380 V - 7.5 kVA
ENGINE - Hatz
FUEL SUPPLY - Diesel
STARTER - Electric
