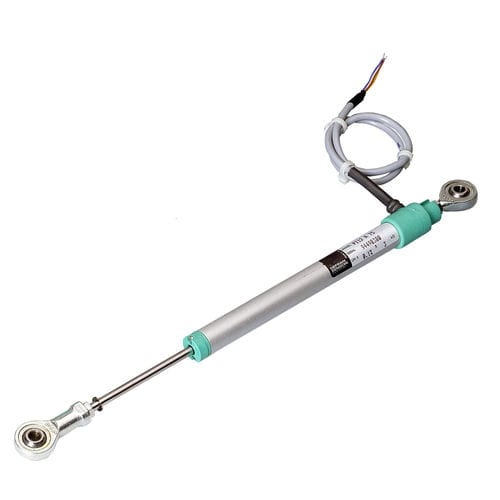

Linear displacement transducer PZ12-A-025
potentiometerIP65cylindrical

linear displacement transducer
linear displacement transducer
Add to favorites
Compare this product


Characteristics

Type
linear
Technology
potentiometer
Protection class
IP65
Other characteristics
stainless steel, cylindrical
Measuring range

25 mm
(0.98 in)

Measuring rate

Max.: 2,000 Hz

Min.: 5 Hz

Ambient temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

Rectilinear displacement transducer with cylindrical case - Provided with 3x0.25 3-pin PVC cable - Cable length: 3m - 25mm useful electrical stroke - Fixing on self-aligning ball-joints – IP65. TECHNICAL DATA Resolution - Infinite Displacement speed - ≤ 10 m/s Displacement force - ≤ 0.5 N Life - >>25x106m strokes,or 100x106 operations, whichever is less (within C.E.U.) Vibrations - 5...2000Hz, Amax =0,75 mm amax. = 20 g Shock - 50 g, 11ms. Tolerance on resistance - ± 20% Recommended cursor current - 100MΩ a 500V=, 1bar, 2s Dielectric strength - < 100 µA a 500V~, 50Hz, 2s,1bar Coeff. termico effettivo della tensione di uscita - < 1,5ppm/°C
