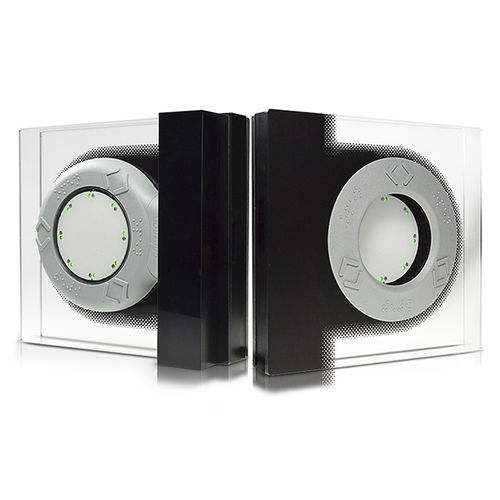

Capacitive switch CHT51 series

sensitivemultipolewaterproof

Description CHT51 SENSORswitches are designed for gluing to insulated glass (double-glazed glass). They are constructed for two-sided operation and switch by light touch on the pane of glass. On that score they are suitable for applications from the inside and outside of a vehicle or building with double-glazed glass. For their installation and application is no hole required in the pane. As door opening buttons CHT51 switches are suitable for the high frequency continuous service used in the passenger transport and building technology. The switches provide optical feedback via 16 bright LEDs. According to the requirements of TSI-PRM for people with limited mobility, the outer ring can be equipped with Braille and raised pictograms. CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT51 series for the required specifications and applications. Contact us: CAPTRON service. Important properties •Adhesive mounting No screws required. •Switching through double glass and direct touch No need to drill holes in the panes. •Two-sided control Can be used on the inside and outside. •Feedback Visual feedback through 16 LEDs. •Shock-resistant The sensor cannot be destroyed by lighter flames or severe blows. •100 % water & oil-proof - IP69K Sensor completely sealed in cast resin. •Durable service life More than 100 million operation cycles (transistor output). •Accessibility Braille and raised chevrons on coloured cover ring, 25 cm² operating surface. •TSI-PRM certified (depends on model) By directive 1300/2014.
