Capacitive switch CHT61 series
multipolewaterproofvandal-proof

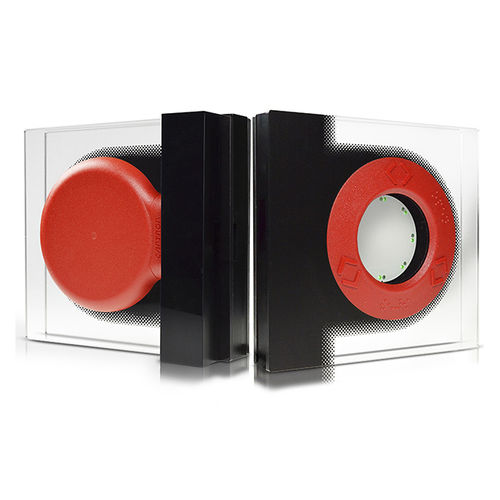

Capacitive switch - CHT61 series - CAPTRON - multipole / waterproof / vandal-proof
Capacitive switch - CHT61 series - CAPTRON - multipole / waterproof / vandal-proof
Capacitive switch - CHT61 series - CAPTRON - multipole / waterproof / vandal-proof - image - 2
Capacitive switch - CHT61 series - CAPTRON - multipole / waterproof / vandal-proof - image - 3
Capacitive switch - CHT61 series - CAPTRON - multipole / waterproof / vandal-proof - image - 4
Add to favorites
Compare this product


Characteristics

Type
capacitive
Number of poles
multipole
Protection level
waterproof, vandal-proof, robust, rugged, IP67, IP69K
Other characteristics
LED-illuminated, door opening, optical, door
Primary current

400 mA

Voltage

24 V

Description

Description The SENSORswitch CHT61 is designed for adhesive mounting on glass and switch by touch. The SENSORswitch CHT61 can be switched one sided through double glass. For installation / application it is not required to have a hole in the glass. The field of application extends over traffic engineering and building technology up to information services. The SENSORswitch is equipped with an optical feedback. Several million cycles and an extremely long life completes the SENSORswitch. For people with limited mobility, the SENSORswitch is available with Braille or raised symbols at the outer and the cover ring. Important properties •Adhesive mounting No screws required. •Switching through double glass No need to drill holes in the panes. •One-sided control Can be used on the outside only. •Feedback Visual feedback through 16 LEDs. •Shock-resistant The sensor cannot be destroyed by lighter flames or severe blows. •100 % water & oil-proof - IP69K Sensor completely sealed in cast resin. •Durable service life More than 100 million operation cycles (transistor output). •Accessibility Braille and raised chevrons on coloured cover ring, 25 cm² operating surface. •TSI-PRM certified (depends on model) By directive 1300/2014.
