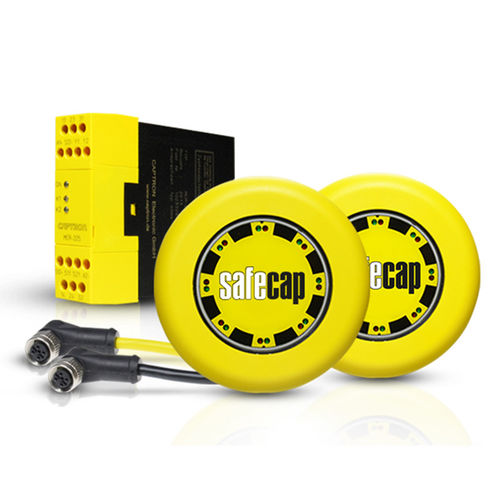

Capacitive two-hand control SC4

IP69KIK08resilient

Description The capacitive two-hand safety controls in the SC4 series allows heavy industrial automation machinery and systems to be operated safely and without pressure and meets the very highest safety requirements of Category 4 under PL e to DIN EN ISO 13849-1. CAPTRON supplies the SC4 series in Basic, Protect and Complete sets. The additional safety elements such as the Protector or the control desk also provide protection from outside interference and satisfy all the requirements for two-hand safety controls under DIN EN 574. Capacitive two-hand safety controls are specially designed for everyday, ergonomic long-term use and deliver extreme durability, reliability and robustness. The touch area has a diameter of 63 mm making it very large and easy to use. The user receives optical feedback through 8 red and 8 green LEDs. CAPTRON can provide individual advice to enable you to choose the perfect product for the required specifications and applications. Contact us: CAPTRON service. Important properties •100% water and oilproof Protection class IP69K, fully sealed in casting resin •Extremely long service life Over 100 million switching cycles •Impact-resistant – robust Protection rating IK08, cannot be destroyed by lighter flames and blows to the switch surface •Foreign object check Recognises obstructions •Contamination control Recognises contamination •Touch sensor Maximum ease of use, effortless, no strain on wrists •Safety certification According to PL e (DIN EN ISO 13849-1)
