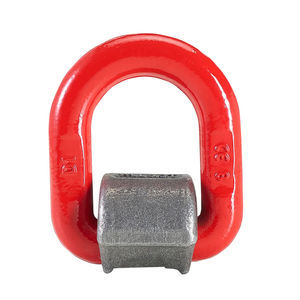

Anchor bracket C835X series

Anchorage bracket with fixing screws used for lifting loads. - Safety coefficient 4 - Ring for orientation at 120 ° - Screw included in the package - From M20 to M30 screw burnished black cl 10.9 in compliance UNI5739 / DIN933 From M36 to M48 screw burnished black cl 10.9 in compliance UNI5931 / DIN912 - The anchorage bracket may be used in total safety with a maximum of 20.000 lifting full loads - Suitable for lifting in safety conditions in compliance to the machine directive 2006/42/EC - Screw, bracket and ring tested at 100% magnaflux - Realized with high resistance steel - Painted with epoxy - Tested to 20.000 fatigue cycles
