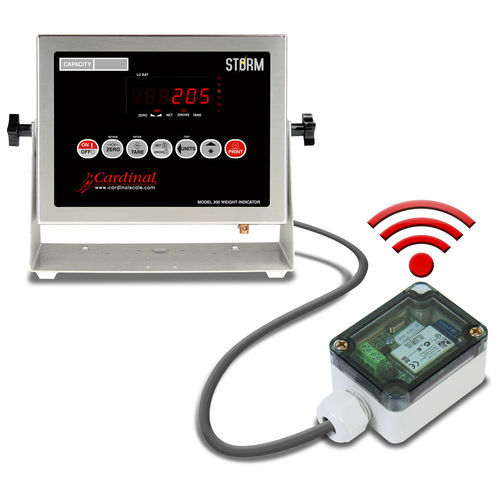

WiFi transceiver S2WIFI

EthernetRS232LAN

Cardinal Scale’s S2WIFI connects to IEEE 802.11b/g wireless local area networks (wireless LAN) and allows you to wirelessly send data from weight indicators to existing networks, remote displays, printers, laptops, PCs, tablets, and smart phones. The robust S2WIFI allows you to utilize Cardinal’s extensive library of mobile apps for smart phones and tablets. The S2WIFI converts serial to a Wi-Fi signal and supplies wireless Ethernet for any Cardinal Scale indicator. It may be added to an existing network or you can create a stand-alone network. Four communication status LEDs allow you to quickly identify power, link connection, transmit/receive, and reset to the factory default. The S2WIFI features a watertight, weatherproof enclosure in a compact polycarbonate box with clear smoke cover. No external power is needed, since all power is supplied by the indicator. Features •Appears as a Wireless Access Point •Compact Fully-Enclosed Module •Easily Connects to an Existing Network •Easy Web Browser Configuration •Network Configuration Recall •No External Power Needed •Polycarbonate Box with Clear-Smoke Cover •Supplies Wireless Ethernet For Any Indicator •Watertight Weatherproof Enclosure Specifications Max. Range: 60-80 ft / 18-24 m Cable Length: 6 ft / 1.8 m RS232 serial Status LEDs: Power, Link, Transmit/Receive, Reset to Default Dimensions: 2.58 in W x 1.98 in D x 1.4 in H / 65.5 mm W x 50.5 mm D x 35.5 mm H (3.29 in W / 83.5 mm W with end connector) Weight: 0.27 lb / 0.12 kg Wireless LAN: IEEE 802.11b/g
