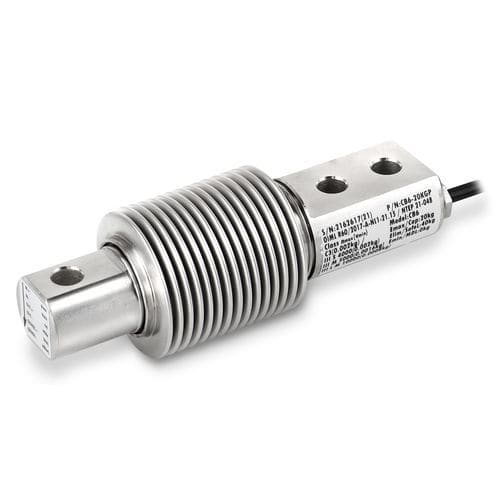

Bending beam load cell CB6 series

beam typestrain gaugeweighing

The CB6 bellows type load cell is a high performance, sealed bending beam load cells for use in low profile platforms, flexure bases, hanging scales, scale conversions, hopper and packaging scales, and a variety of other medical, industrial, and process weighing applications. Stainless steel construction and welded bellow seals make the CB6 ideally suited for use in harsh and corrosive environments where routine washdowns occur. Easy to install and interchangeable with similar cells. NTEP legal-for-trade and OIML certified. Capacity options include 10, 20, 50, 100 and 200 kg. Features •Environmentally-Sealed •IP68 Protection Class •NTEP Legal for Trade •OIML Certified •Precision Engineering •Stainless Steel •VCAP Certified Specifications NTEP Approval: 96-091 OIML Approval: R60/1991-DK-96.04 Cable Length: 3m Accuracy Class: III C3 Minimum Dead Load: 0 kg Safe Load Limit: 150% R.C. Ultimate Load: 300% R.C. Rated Output: 2 ± 10% mV/V Protection Class: IP-68 Material: Stainless Steel
