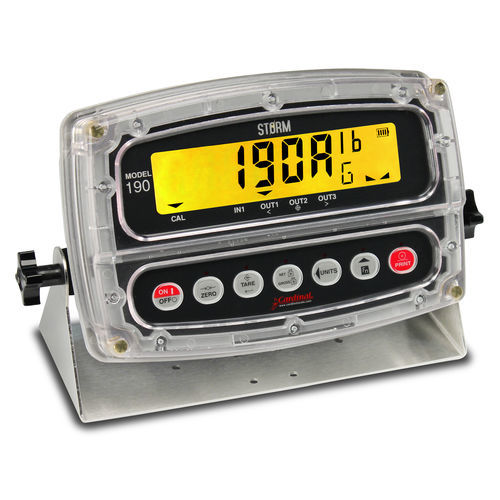

LCD display weight indicator 190A Storm

portablewaterproofIP69

Designed for non-legal-for-trade portable axle weighing applications such as with Cardinal Scale’s 760 series mobile wheel weighers, the 190A weight indicator features axle weighing software, traffic control mode to automatically capture accumulative axle weights without the driver having to leave the truck (when connected to a SB600 remote display and printer), two RS232 serial ports (for printer and remote display), optional rechargeable lithium ion battery, capacitive touch keys, and IP69K-rated washdown enclosure (the highest protection rating possible). The 1-inch/25-mm high backlit LCD is visible in direct sunlight and may be set to any one of 6 different customizable settings. The 190A feature 3 watertight gland connectors, quick-connect power connector, and one ID. Features •1-in-high LCD •2 RS232 Serial Ports •Axle Weighing Software •Capacitive Touch Keys •IP69K-Rated Washdown •Optional Lithium Ion Rechargeable Battery •Ultra-Tough Polycarbonate Enclosure Specifications Power Requirements: 10.5 to 30 VDC 1.0A Max. Enclosure Type: Thermoplastic IP69K wall or desk-mount Enclosure Size: 9.4 inch W x 6.4 inch H x 3.7 inch D / 239 mm W x 163 mm H x 93 mm D Operating Temperature: 14 to 104 ºF (-10 to +40 ºC) Operating Humidity: 90% non-condensing (maximum) DIsplay: Six digit, seven segment, 1.0 inch / 25 mm high Backlit LCD Transducer Excitation: 5.18 VDC Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost) Compatibility: Designed strictly for non-legal-for-trade mobile axle pad weighing use such as with Cardinal Scale’s 760 series
