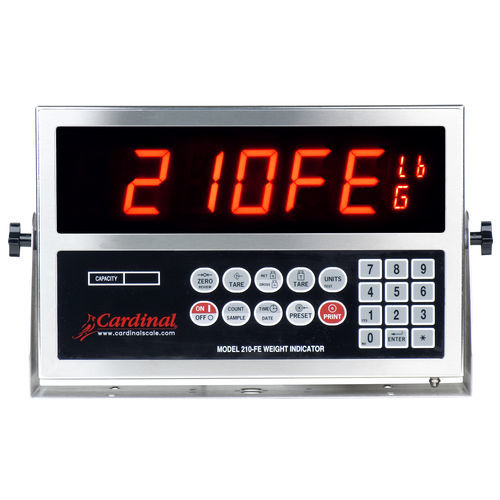

LED display weight indicator 210FE

ruggedIP66RS-232

“Bigger is better” is certainly a rule that can be applied to the Cardinal 210FE’s large display readouts. With a 15-inch W x 9.7-inch H (38-cm W x 24.6-cm H) rugged stainless steel enclosure housing a highly visible 2.24-inch/57 mm high bright-red LED with brightness control, the 210FE is easily viewed from long distance making this indicator ideal for outdoor applications. Retaining all of the standard features of a 210: remote controllability, dual RS232 serial ports, flexible print formats, auto shutoff, and selectable key lockout with the added advantage of an over-sized numeric keypad for convenient use with gloves. NTEP legal-for-trade and OIML certified. Supports up to 8 350-ohm load cells. Features •10-Level Brightness Control •2 RS232 Serial Ports •2.24-in-high LED Digits •Extra-large Key Sizes for Gloves •IP66 Enclosure Rating •NTEP Legal for Trade •OIML Certified •Powers up to 8 Load Cells •Stainless Steel Enclosure Specifications Power: 90 to 264 VAC (50/60 Hz) at 0.4A Enclosure Dimensions: 9.7 in H x 15 in W x 3.1 in D (246 mm H x 381 mm W x 79 mm D) Operating Environment: Temperature: 14 to 104 ºF (-10 to +40 ºC), Humidity: 90% non-condensing (maximum) Display: Six-digit, seven-segment, 2.5 in high (display), 2.24 in high LED digits Excitation: 12 VDC Signal Input Range: 1.0 mV min. to 40 mV max. (with dead load boost) Number of Load Cells: 8 each, 350 OHM minimum resistance Load Cell Cable Length: 500 ft maximum. Consult factory for other requirements. 30 feet maximum without sense lines
